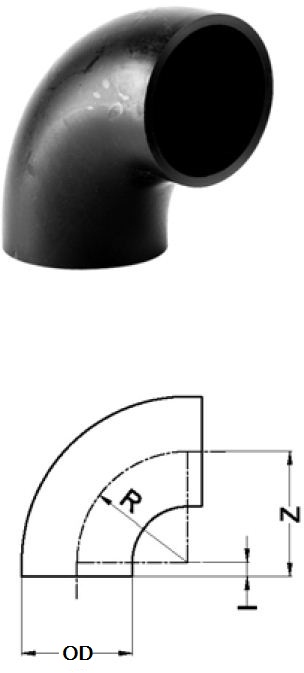

Bend 90° short PE100
for butt-welding
| OD | Part Number | Z | l | R |
|---|---|---|---|---|
| 63 | SRE..063 | 77 | 8 | 69 |
| 75 | SRE..075 | 85 | 10 | 75 |
| 90 | SRE..090 | 100 | 10 | 90 |
| 110 | SRE..110 | 120 | 10 | 110 |
| 125 | SRE..125 | 140 | 15 | 125 |
| 140 | SRE..140 | 155 | 15 | 140 |
| 160 | SRE..160 | 175 | 15 | 160 |
| 180 | SRE..180 | 195 | 15 | 180 |
| 200 | SRE..200 | 215 | 15 | 200 |
| 225 | SRE..225 | 245 | 20 | 225 |
| 250 | SRE..250 | 275 | 25 | 250 |
| 280 | SRE..280 | 310 | 30 | 280 |
| 315 | SRE..315 | 350 | 35 | 315 |
| 355 | SRE..355 | 340 | 40 | 300 |
| 400 | SRE..400 | 350 | 50 | 300 |
| 450 | SRE..450 | 450 | 50 | 400 |
| 500 | SRE..500 | 450 | 50 | 400 |
| *Measurements are in millimeters *Measurements are approximate..SDR Rating to be specified | ||||
